Data Summaries

datasummary is a function from the modelsummary package. It allows us to create data summaries, frequency tables, crosstabs, correlation tables, balance tables (aka “Table 1”), and more. It has many benefits:

This tutorial will show how to draw tables like these (and more!):

Background

datasummary is built around the fantastic tables package for R. It is a thin “wrapper” which adds convenience functions and arguments; a user-interface consistent with modelsummary; cleaner html output; and the ability to export tables to more formats, including gt tables, flextable objects, and Microsoft Word documents.

datasummary is a general-purpose table-making tool. It allows us to build (nearly) any summary table we want by using simple 2-sided formulae. For example, in the expression x + y ~ mean + sd, the left-hand side of the formula identifies the variables or statistics to display as rows, and the right-hand side defines the columns. Below, we will see how variables and statistics can be “nested” with the * operator to produce tables like the ones above.

In addition to datasummary, the modelsummary package includes a “family” of companion functions named datasummary_*. These functions facilitate the production of standard, commonly used tables. This family currently includes:

  • datasummary(): Flexible function to create custom tables using 2-sided formulae.
  • datasummary_balance(): Group characteristics (e.g., control vs. treatment)
  • datasummary_correlation(): Table of correlations.
  • datasummary_skim(): Quick summary of a dataset.
  • datasummary_df(): Create a table from any dataframe.
  • datasummary_crosstab(): Cross tabulations of categorical variables.

In the next three sections, we illustrate how to use datasummary_balance, datasummary_correlation, datasummary_skim, and datasummary_crosstab. Then, we dive into datasummary itself to highlight its ease and flexibility.

datasummary_skim

The first datasummary companion function is called datasummary_skim. It was heavily inspired by one of my favorite data exploration tools for R: the skimr package. The goal of this function is to give us a quick look at the data.

To illustrate, we download data from the cool new palmerpenguins package by Alison Presmanes Hill and Allison Horst. These data were collected at the Palmer Station in Antarctica by Gorman, Williams & Fraser (2014), and they include 3 categorical variables and 4 numeric variables.

library(modelsummary)
library(tidyverse)

url <- 'https://vincentarelbundock.github.io/Rdatasets/csv/palmerpenguins/penguins.csv'
penguins <- read.csv(url, na.strings = "")

To summarize the numeric variables in the dataset, we type:

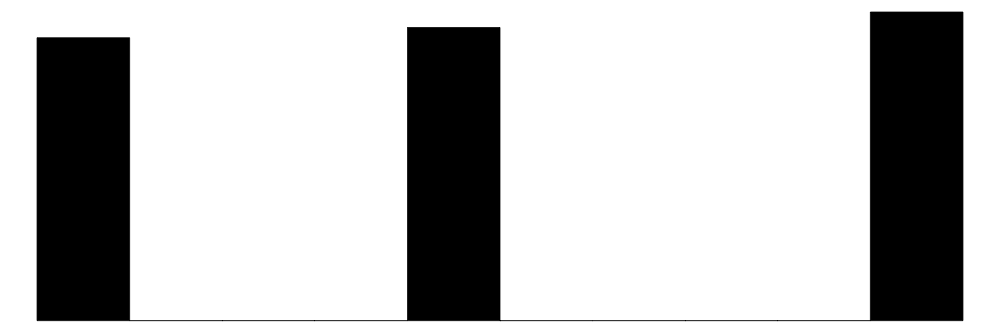

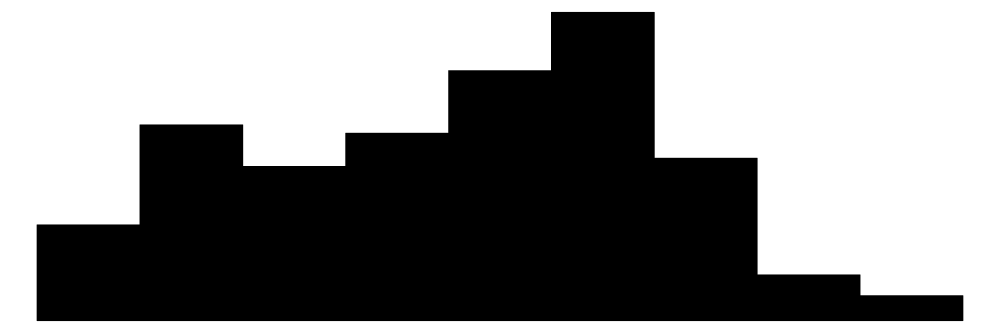

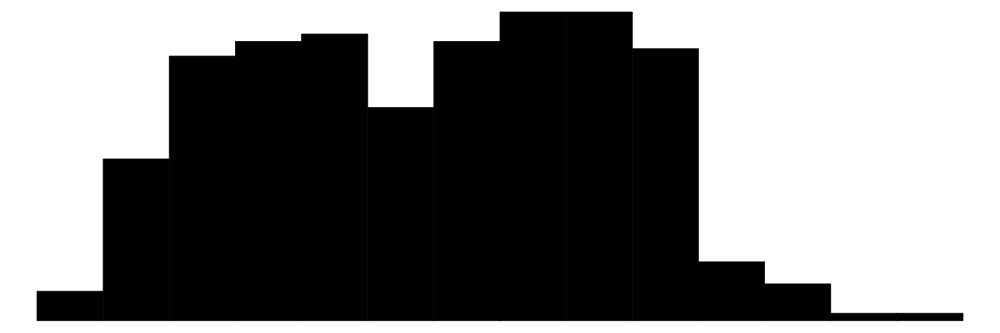

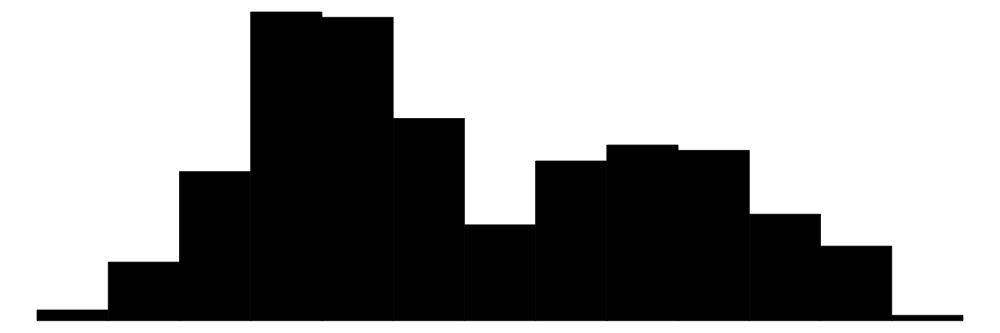

datasummary_skim(penguins)
tinytable_hn2wi7u99bzecidzjyy8
Unique Missing Pct. Mean SD Min Median Max
rownames 344 0 172.5 99.4 1.0 172.5 344.0
bill_length_mm 165 1 43.9 5.5 32.1 44.5 59.6
bill_depth_mm 81 1 17.2 2.0 13.1 17.3 21.5
flipper_length_mm 56 1 200.9 14.1 172.0 197.0 231.0
body_mass_g 95 1 4201.8 802.0 2700.0 4050.0 6300.0
year 3 0 2008.0 0.8 2007.0 2008.0 2009.0

To summarize the categorical variables in the dataset, we type:

datasummary_skim(penguins, type = "categorical")
tinytable_9ja8yrezwak5dy1y7sp4
N %
species Adelie 152 44.2
Chinstrap 68 19.8
Gentoo 124 36.0
island Biscoe 168 48.8
Dream 124 36.0
Torgersen 52 15.1
sex female 165 48.0
male 168 48.8
NA 11 3.2

Later in this tutorial, it will become clear that datasummary_skim is just a convenience “template” built around datasummary, since we can achieve identical results with the latter. For example, to produce a text-only version of the tables above, we can type:

datasummary(All(penguins) ~ Mean + SD + Histogram,
            data = penguins,
            output = 'markdown')
|                  |    Mean|     SD|  Histogram|
|:-----------------|-------:|------:|----------:|
|bill_length_mm    |   43.92|   5.46|  ▁▅▆▆▆▇▇▂▁|
|bill_depth_mm     |   17.15|   1.97| ▃▄▄▄▇▆▇▅▂▁|
|flipper_length_mm |  200.92|  14.06|  ▂▅▇▄▁▄▄▂▁|
|body_mass_g       | 4201.75| 801.95| ▁▄▇▅▄▄▃▃▂▁|

Printing histograms will not work on all computers. If you have issues with this feature, try changing your computer’s locale, or try using a different display font.

The datasummary_skim function does not currently allow users to summarize continuous and categorical variables together in a single table, but the datasummary_balance function described in the next section can do so.

datasummary_balance

The expressions “balance table” or “Table 1” refer to a type of table which is often printed in the opening pages of a scientific peer-reviewed article. Typically, this table includes basic descriptive statistics about different subsets of the study population. For instance, analysts may want to compare the socio-demographic characteristics of members of the “control” and “treatment” groups in a randomized control trial, or the flipper lengths of male and female penguins. In addition, balance tables often include difference in means tests.

To illustrate how to build a balance table using the datasummary_balance function, we download data about a job training experiment studies in Lalonde (1986). Then, we clean up the data by renaming and recoding a few variables.

# Download and read data
training <- 'https://vincentarelbundock.github.io/Rdatasets/csv/Ecdat/Treatment.csv'
training <- read.csv(training, na.strings = "")

# Rename and recode variables
training <- training %>%
            mutate(`Earnings Before` = re75 / 1000,
                   `Earnings After` = re78 / 1000,
                   Treatment = ifelse(treat == TRUE, 'Treatment', 'Control'),
                   Married = ifelse(married == TRUE, 'Yes', 'No')) %>%
            select(`Earnings Before`,
                   `Earnings After`,
                   Treatment,
                   Ethnicity = ethn,
                   Age = age,
                   Education = educ,
                   Married)

Now, we execute the datasummary_balance function. If the estimatr package is installed, datasummary_balance will calculate the difference in means and test statistics.

caption <- 'Descriptive statistics about participants in a job training experiment. The earnings are displayed in 1000s of USD. This table was created using the "datasummary" function from the "modelsummary" package for R.'
reference <- 'Source: Lalonde (1986) American Economic Review.'

library(modelsummary)
datasummary_balance(~Treatment,
                    data = training,
                    title = caption,
                    notes = reference)

Note that if the dataset includes columns called “blocks”, “clusters”, or “weights”, this information will automatically be taken into consideration by estimatr when calculating the difference in means and the associated statistics.

Users can also use the ~ 1 formula to indicate that they want to summarize all the data instead of splitting the analysis across subgroups:

datasummary_balance(~ 1, data = training)
tinytable_0mobpgmdi7gxq2vytjgb
Mean Std. Dev.
Earnings Before 17.9 13.9
Earnings After 20.5 15.6
Age 34.2 10.5
Education 12.0 3.1
N Pct.
Treatment Control 2490 93.1
Treatment 185 6.9
Ethnicity black 780 29.2
hispanic 92 3.4
other 1803 67.4
Married No 483 18.1
Yes 2192 81.9

datasummary_correlation

The datasummary_correlation accepts a dataframe or tibble, it identifies all the numeric variables, and calculates the correlation between each of those variables:

datasummary_correlation(mtcars)
tinytable_1oizaoz0fz4hliqasv9f
mpg cyl disp hp drat wt qsec vs am gear carb
mpg 1 . . . . . . . . . .
cyl -.85 1 . . . . . . . . .
disp -.85 .90 1 . . . . . . . .
hp -.78 .83 .79 1 . . . . . . .
drat .68 -.70 -.71 -.45 1 . . . . . .
wt -.87 .78 .89 .66 -.71 1 . . . . .
qsec .42 -.59 -.43 -.71 .09 -.17 1 . . . .
vs .66 -.81 -.71 -.72 .44 -.55 .74 1 . . .
am .60 -.52 -.59 -.24 .71 -.69 -.23 .17 1 . .
gear .48 -.49 -.56 -.13 .70 -.58 -.21 .21 .79 1 .
carb -.55 .53 .39 .75 -.09 .43 -.66 -.57 .06 .27 1

The values displayed in this table are equivalent to those obtained by calling: cor(x, use='pairwise.complete.obs').

The datasummary_correlation function has a methods argument. The default value is "pearson", but it also accepts other values like "spearman". In addition, method can accept any function which takes a data frame and returns a matrix. For example, we can create a custom function to display information from the correlation package. This allows us to include significance stars even if the stars argument is not supported by default in datasummary_correlation():

library(correlation)

fun <- function(x) {
  out <- correlation(mtcars) |>
    summary() |>
    format(2) |>
    as.matrix()
  row.names(out) <- out[, 1]
  out <- out[, 2:ncol(out)]
  return(out)
}

datasummary_correlation(mtcars, method = fun)
tinytable_2sv3xyssl4rwon2cj8ph
carb gear am vs qsec wt drat hp disp cyl
mpg -.55* .48 .60** .66** .42 -.87*** .68*** -.78*** -.85*** -.85***
cyl .53* -.49 -.52* -.81*** -.59* .78*** -.70*** .83*** .90***
disp .39 -.56* -.59* -.71*** -.43 .89*** -.71*** .79***
hp .75*** -.13 -.24 -.72*** -.71*** .66** -.45
drat -.09 .70*** .71*** .44 .09 -.71***
wt .43 -.58* -.69*** -.55* -.17
qsec -.66** -.21 -.23 .74***
vs -.57* .21 .17
am .06 .79***
gear .27

datasummary_crosstab

A cross tabulation is often useful to explore the association between two categorical variables.

library(modelsummary)
url <- 'https://vincentarelbundock.github.io/Rdatasets/csv/palmerpenguins/penguins.csv'
penguins <- read.csv(url, na.strings = "")

datasummary_crosstab(species ~ sex, data = penguins)
tinytable_cza009tz34o1lx70ij08
species female male All
Adelie N 73 73 152
% row 48.0 48.0 100.0
Chinstrap N 34 34 68
% row 50.0 50.0 100.0
Gentoo N 58 61 124
% row 46.8 49.2 100.0
All N 165 168 344
% row 48.0 48.8 100.0

You can create multi-level crosstabs by specifying interactions using the * operator:

datasummary_crosstab(species ~ sex * island, data = penguins)
tinytable_nt5vlh9f9s7y6c47hnwn
female male
species Biscoe Dream Torgersen Biscoe Dream Torgersen All
Adelie N 22 27 24 22 28 23 152
% row 14.5 17.8 15.8 14.5 18.4 15.1 100.0
Chinstrap N 0 34 0 0 34 0 68
% row 0.0 50.0 0.0 0.0 50.0 0.0 100.0
Gentoo N 58 0 0 61 0 0 124
% row 46.8 0.0 0.0 49.2 0.0 0.0 100.0
All N 80 61 24 83 62 23 344
% row 23.3 17.7 7.0 24.1 18.0 6.7 100.0

By default, the cell counts and row percentages are shown for each cell, and both row and column totals are calculated. To show cell percentages or column percentages, or to drop row and column totals, adjust the statistic argument. This argument accepts a formula that follows the datasummary “language”. To understand exactly how it works, you may find it useful to skip to the datasummary tutorial in the next section. Example:

datasummary_crosstab(species ~ sex,
                     statistic = 1 ~ Percent("col"),
                     data = penguins)
tinytable_1g37q7pnvoi295mmeo83
species female male
Adelie % col 44.2 43.5
Chinstrap % col 20.6 20.2
Gentoo % col 35.2 36.3
All % col 100.0 100.0

See ?datasummary_crosstab for more details.

datasummary

datasummary tables are specified using a 2-sided formula, divided by a tilde ~. The left-hand side describes the rows; the right-hand side describes the columns. To illustrate how this works, we will again be using the palmerpenguins dataset:

To display the flipper_length_mm variable as a row and the mean as a column, we type:

datasummary(flipper_length_mm ~ Mean,
            data = penguins)
tinytable_zffc5ph27701p7d482tt
Mean
flipper_length_mm 200.92

To flip rows and columns, we flip the left and right-hand sides of the formula:

datasummary(Mean ~ flipper_length_mm,
            data = penguins)
tinytable_xd4wg2xjvasxsqcndp2n
flipper_length_mm
Mean 200.92

Custom summary functions

The Mean function is a shortcut supplied by modelsummary, and it is equivalent to mean(x,na.rm=TRUE). Since the flipper_length_mm variable includes missing observation, using the mean formula (with default na.rm=FALSE) would produce a missing/empty cell:

datasummary(flipper_length_mm ~ mean,
            data = penguins)
tinytable_cy9nps9i734cw5nah2va
mean
flipper_length_mm

modelsummary supplies these functions: Mean, SD, Min, Max, Median, P0, P25, P50, P75, P100, Histogram, and a few more (see the package documentation).

Users are also free to create and use their own custom summaries. Any R function which takes a vector and produces a single value is acceptable. For example, the Range functions return a numerical value, and the MinMax returns a string:

Range <- function(x) max(x, na.rm = TRUE) - min(x, na.rm = TRUE)

datasummary(flipper_length_mm ~ Range,
            data = penguins)
tinytable_a5w4qi4o91htr671oe7a
Range
flipper_length_mm 59.00
MinMax <- function(x) paste0('[', min(x, na.rm = TRUE), ', ', max(x, na.rm = TRUE), ']')

datasummary(flipper_length_mm ~ MinMax,
            data = penguins)
tinytable_mqp161dl6xktmbeoarr8
MinMax
flipper_length_mm [172, 231]

Concatenating with +

To include more rows and columns, we use the + sign:

datasummary(flipper_length_mm + body_mass_g ~ Mean + SD,
            data = penguins)
tinytable_4pwfoj6mkrx9uuy0cs5k
Mean SD
flipper_length_mm 200.92 14.06
body_mass_g 4201.75 801.95

Sometimes, it can be cumbersome to list all variables separated by + signs. The All() function is a useful shortcut:

datasummary(All(penguins) ~ Mean + SD,
            data = penguins)
tinytable_i2bilny73ou4yj9jqap5
Mean SD
rownames 172.50 99.45
bill_length_mm 43.92 5.46
bill_depth_mm 17.15 1.97
flipper_length_mm 200.92 14.06
body_mass_g 4201.75 801.95
year 2008.03 0.82

By default, All selects all numeric variables. This behavior can be changed by modifying the function’s arguments. See ?All for details.

Nesting with *

datasummary can nest variables and statistics inside categorical variables using the * symbol. When applying the the * operator to factor, character, or logical variables, columns or rows will automatically be nested. For instance, if we want to display separate means for each value of the variable sex, we use mean * sex:

datasummary(flipper_length_mm + body_mass_g ~ mean * sex,
            data = penguins)
tinytable_xax0pmi6qf27kz4108v6
female male
flipper_length_mm 197.36 204.51
body_mass_g 3862.27 4545.68

We can use parentheses to nest several terms inside one another, using a call of this form: x * (y + z). Here is an example with nested columns:

datasummary(body_mass_g ~ sex * (mean + sd),
            data = penguins)
tinytable_qxwkbr8cogm3knlix0rv
female male
mean sd mean sd
body_mass_g 3862.27 666.17 4545.68 787.63

Here is an example with nested rows:

datasummary(sex * (body_mass_g + flipper_length_mm) ~ mean + sd,
            data = penguins)
tinytable_4wtekqnh91peow3yshmu
sex mean sd
female body_mass_g 3862.27 666.17
flipper_length_mm 197.36 12.50
male body_mass_g 4545.68 787.63
flipper_length_mm 204.51 14.55

The order in which terms enter the formula determines the order in which labels are displayed. For example, this shows island above sex:

datasummary(flipper_length_mm + body_mass_g ~ mean * island * sex,
            data = penguins)
tinytable_58o7ydjw3h0lktvxtf69
Biscoe Dream Torgersen
female male female male female male
flipper_length_mm 205.69 213.29 190.02 196.31 188.29 194.91
body_mass_g 4319.38 5104.52 3446.31 3987.10 3395.83 4034.78

This shows sex above island values:

datasummary(flipper_length_mm + body_mass_g ~ mean * sex * island,
            data = penguins)
tinytable_065sgrblwlww7l8g37wd
female male
Biscoe Dream Torgersen Biscoe Dream Torgersen
flipper_length_mm 205.69 190.02 188.29 213.29 196.31 194.91
body_mass_g 4319.38 3446.31 3395.83 5104.52 3987.10 4034.78

By default, datasummary omits column headers with a single value/label across all columns, except for the header that sits just above the data. If the header we want to see is not displayed, we may want to reorder the terms of the formula. To show all headers, set sparse_header=FALSE:

datasummary(flipper_length_mm + body_mass_g ~ mean * sex * island,
            data = penguins,
            sparse_header = FALSE)
tinytable_dgcipq1yvifbs4hdcxwm
female male
Biscoe Dream Torgersen Biscoe Dream Torgersen
flipper_length_mm 205.69 190.02 188.29 213.29 196.31 194.91
body_mass_g 4319.38 3446.31 3395.83 5104.52 3987.10 4034.78

When using sparse_header=FALSE, it is often useful to insert Heading() * in the table formula, in order to rename or omit some of the labels manually. Type ?tables::Heading for details and examples.

Renaming with =

Personally, I prefer to rename variables and values before drawing my tables, using backticks when variable names include whitespace. For example,

tmp <- penguins %>%
       select(`Flipper length (mm)` = flipper_length_mm,
              `Body mass (g)` = body_mass_g)

datasummary(`Flipper length (mm)` + `Body mass (g)` ~ Mean + SD,
            data = tmp)
tinytable_bv0shp7xzdj2ymctkdi7
Mean SD
Flipper length (mm) 200.92 14.06
Body mass (g) 4201.75 801.95

However, thanks to the tables package, datasummary offers two additional mechanisms to rename. First, we can wrap a term in parentheses and use the equal = sign: (NewName=OldName):

datasummary((`Flipper length (mm)` = flipper_length_mm) + (`Body mass (g)` = body_mass_g) ~
            island * ((Avg. = Mean) + (Std.Dev. = SD)),
            data = penguins)
tinytable_467mbql9ir1mfvqcrw3m
Biscoe Dream Torgersen
Avg. Std.Dev. Avg. Std.Dev. Avg. Std.Dev.
Flipper length (mm) 209.71 14.14 193.07 7.51 191.20 6.23
Body mass (g) 4716.02 782.86 3712.90 416.64 3706.37 445.11

Second, we can use the Heading() function:

datasummary(Heading("Flipper length (mm)") * flipper_length_mm + Heading("Body mass (g)") * body_mass_g ~ island * (Mean + SD),
            data = penguins)
tinytable_isxzva51crln0q6qve57
Biscoe Dream Torgersen
Mean SD Mean SD Mean SD
Flipper length (mm) 209.71 14.14 193.07 7.51 191.20 6.23
Body mass (g) 4716.02 782.86 3712.90 416.64 3706.37 445.11

The Heading function also has a nearData argument which can be useful in cases where some rows are nested but others are not. Compare the last row of these two tables:

datasummary(sex * (flipper_length_mm + bill_length_mm) + Heading("Body mass (g)") * body_mass_g ~ Mean + SD,
            data = penguins)
tinytable_lmxdhcfzowy5piud2o1m
sex Mean SD
female flipper_length_mm 197.36 12.50
bill_length_mm 42.10 4.90
male flipper_length_mm 204.51 14.55
bill_length_mm 45.85 5.37
Body mass (g) 4201.75 801.95
datasummary(sex * (flipper_length_mm + bill_length_mm) + Heading("Body mass (g)", nearData=FALSE) * body_mass_g ~ Mean + SD,
            data = penguins)
tinytable_mg0up4m5xwzv3oxgsahf
sex Mean SD
female flipper_length_mm 197.36 12.50
bill_length_mm 42.10 4.90
male flipper_length_mm 204.51 14.55
bill_length_mm 45.85 5.37
Body mass (g) 4201.75 801.95

Counts and Percentages

The tables package allows datasummary to use neat tricks to produce frequency tables:

  1. Add a N to the right-hand side of the equation.
  2. Add Percent() to the right-hand side to calculate the percentage of observations in each cell.
  3. Add 1 to the left-hand side to include a row with the total number of observations:
datasummary(species * sex + 1 ~ N + Percent(),
            data = penguins)
tinytable_gkyd5bai4dcj9a4oevgn
species sex N Percent
Adelie female 73 21.22
male 73 21.22
Chinstrap female 34 9.88
male 34 9.88
Gentoo female 58 16.86
male 61 17.73
All 344 100.00

Note that the Percent() function accepts a denom argument to determine if percentages should be calculated row or column-wise, or if they should take into account all cells.

Weighted percentages

The Percent() pseudo-function also accepts a fn argument, which must be a function which accepts two vectors: x is the values in the current cell, and y is all the values in the whole dataset. The default fn is:

datasummary(species * sex + 1 ~ N + Percent(fn = function(x, y) 100 * length(x) / length(y)),
            data = penguins)
tinytable_m71ex6h7273hgxktpq3b
species sex N Percent
Adelie female 73 21.22
male 73 21.22
Chinstrap female 34 9.88
male 34 9.88
Gentoo female 58 16.86
male 61 17.73
All 344 100.00

The code above takes the number of elements in the cell length(x) and divides it by the number of total elements length(y).

Now, let’s say we want to display percentages weighted by one of the variables of the dataset. This can often be useful with survey weights, for example. Here, we use an arbitrary column of weights called flipper_length_mm:

wtpct <- function(x, y) sum(x, na.rm = TRUE) / sum(y, na.rm = TRUE) * 100
datasummary(species * sex + 1 ~ N + flipper_length_mm * Percent(fn = wtpct),
            data = penguins)
tinytable_ouk5zvck5x6akkkskxfj
species sex N Percent
Adelie female 73 19.95
male 73 20.44
Chinstrap female 34 9.49
male 34 9.89
Gentoo female 58 17.95
male 61 19.67
All 344 100.00

In each cell we now have the sum of weights in that cell, divided by the total sum of weights in the column.

Custom percentages

Here is another simple illustration of Percent function mechanism in action, where we combine counts and percentages in a simple nice label:

dat <- mtcars
dat$cyl <- as.factor(dat$cyl)

fn <- function(x, y) {
    out <- sprintf(
        "%s (%.1f%%)",
        length(x),
        length(x) / length(y) * 100)
}
datasummary(
    cyl ~ Percent(fn = fn),
    data = dat)
tinytable_bqd3xbf443qhvu16noi3
cyl Percent
4 11 (34.4%)
6 7 (21.9%)
8 14 (43.8%)

Factor

The * nesting operator that we used above works automatically for factor, character, and logical variables. Sometimes, it is convenient to use it with other types of variables, such as binary numeric variables. In that case, we can wrap the variable name inside a call to Factor(). This allows us to treat a variable as factor, without having to modify it in the original data. For example, in the mtcars data, there is a binary numeric variable call am. We nest statistics within categories of am by typing:

datasummary(mpg + hp ~ Factor(am) * (mean + sd),
            data = mtcars)
tinytable_wo7kfwenrrlyrdy4rto9
0 1
mean sd mean sd
mpg 17.15 3.83 24.39 6.17
hp 160.26 53.91 126.85 84.06

Arguments: na.rm=TRUE

We can pass any argument to the summary function by including a call to Arguments(). For instance, there are missing values in the flipper_length_mm variable of the penguins dataset. Therefore, the standard mean function will produce no result, because its default argument is na.rm=FALSE. We can change that by calling:

datasummary(flipper_length_mm ~ mean + mean*Arguments(na.rm=TRUE),
            data = penguins)
tinytable_l5ejia69ghx9saa3q1py
mean mean
flipper_length_mm 200.92

Notice that there is an empty cell (NA) under the normal mean function, but that the mean call with Arguments(na.rm=TRUE) produced a numeric result.

We can pass the same arguments to multiple functions using the parentheses:

datasummary(flipper_length_mm ~ (mean + sd) * Arguments(na.rm=TRUE),
            data = penguins)
tinytable_4z5jei30hmhkt0hgns06
mean sd
flipper_length_mm 200.92 14.06

Note that the shortcut functions that modelsummary supplies use na.rm=TRUE by default, so we can use them directly without arguments, even when there are missing values:

datasummary(flipper_length_mm ~ Mean + Var + P75 + Range,
            data = penguins)
tinytable_u7ob9kouv37rswqx2qp1
Mean Var P75 Range
flipper_length_mm 200.92 197.73 213.00 59.00

Arguments: Weighted Mean

You can use the Arguments mechanism to do various things, such as calculating weighted means:

newdata <- data.frame(
  x = rnorm(20),
  w = rnorm(20),
  y = rnorm(20))

datasummary(x + y ~ weighted.mean * Arguments(w = w),
            data = newdata)
tinytable_bma1vtx3kdppms96r0nf
weighted.mean
x 0.33
y -0.07

Which produces the same results as:

weighted.mean(newdata$x, newdata$w)
[1] 0.3266402
weighted.mean(newdata$y, newdata$w)
[1] -0.06615237

But different results from:

mean(newdata$x)
[1] -0.06450409
mean(newdata$y)
[1] 0.06717907

Empty cells

Sometimes, if we nest too much and the dataset is not large/diverse enough, we end up with empty cells. In that case, we add *DropEmpty() to the formula:

datasummary(island * species * body_mass_g ~ sex * (Mean + SD),
            data = penguins)
tinytable_86fi4bsgzd16215m12kq
female male
island species Mean SD Mean SD
Biscoe Adelie body_mass_g 3369.32 343.47 4050.00 355.57
Chinstrap body_mass_g
Gentoo body_mass_g 4679.74 281.58 5484.84 313.16
Dream Adelie body_mass_g 3344.44 212.06 4045.54 330.55
Chinstrap body_mass_g 3527.21 285.33 3938.97 362.14
Gentoo body_mass_g
Torgersen Adelie body_mass_g 3395.83 259.14 4034.78 372.47
Chinstrap body_mass_g
Gentoo body_mass_g
datasummary(island * species * body_mass_g ~ sex * (Mean + SD) * DropEmpty(),
            data = penguins)
tinytable_mvtkawyyax6g28o9orfw
female male
island species Mean SD Mean SD
Biscoe Adelie body_mass_g 3369.32 343.47 4050.00 355.57
Gentoo body_mass_g 4679.74 281.58 5484.84 313.16
Dream Adelie body_mass_g 3344.44 212.06 4045.54 330.55
Chinstrap body_mass_g 3527.21 285.33 3938.97 362.14
Torgersen Adelie body_mass_g 3395.83 259.14 4034.78 372.47

Logical subsets

Cool stuff is possible with logical subsets:

datasummary((bill_length_mm > 44.5) + (bill_length_mm <= 44.5) ~ Mean * flipper_length_mm,
            data = penguins)
tinytable_ax26622b437fe4pzuqew
NA NA
bill_length_mm > 44.5 209.68
bill_length_mm <= 44.5 192.45

See the tables package documentation for more details and examples.

output

All functions in the datasummary_* family accept the same output argument. Tables can be saved to several file formats:

f <- flipper_length_mm ~ island * (mean + sd)
datasummary(f, data = penguins, output = 'table.html')
datasummary(f, data = penguins, output = 'table.tex')
datasummary(f, data = penguins, output = 'table.docx')
datasummary(f, data = penguins, output = 'table.pptx')
datasummary(f, data = penguins, output = 'table.md')
datasummary(f, data = penguins, output = 'table.rtf')
datasummary(f, data = penguins, output = 'table.jpg')
datasummary(f, data = penguins, output = 'table.png')

They can be returned in human-readable data.frames, markdown, html, or LaTeX code to the console:

datasummary(f, data = penguins, output = 'data.frame')
datasummary(f, data = penguins, output = 'markdown')
datasummary(f, data = penguins, output = 'html')
datasummary(f, data = penguins, output = 'latex')

datasummary can return objects compatible with the tinytable, gt, kableExtra, flextable, huxtable, and DT table creation and customization packages:

datasummary(f, data = penguins, output = 'tinytable')
datasummary(f, data = penguins, output = 'gt')
datasummary(f, data = penguins, output = 'kableExtra')
datasummary(f, data = penguins, output = 'flextable')
datasummary(f, data = penguins, output = 'huxtable')
datasummary(f, data = penguins, output = 'DT')

Please note that hierarchical or “nested” column labels are only available for these output formats: kableExtra, gt, html, rtf, and LaTeX. When saving tables to other formats, nested labels will be combined to a “flat” header.

fmt

The fmt argument allows us to set the printing format of numeric values. It accepts a single number representing the number of digits after the period, or a string to be passed to the sprintf function. For instance, setting fmt="%.4f" will keep 4 digits after the dot (see ?sprintf for more options):

datasummary(flipper_length_mm ~ Mean + SD,
            fmt = 4,
            data = penguins)
tinytable_a5dmkc8lr2l1uaz13b5x
Mean SD
flipper_length_mm 200.9152 14.0617

We can set the formatting on a term-by-term basis by using the same Arguments function that we used to handle missing values in the previous section. The shortcut functions that ship with modelsummary (e.g., Mean, SD, Median, P25) all include a fmt argument:

datasummary(flipper_length_mm ~ Mean * Arguments(fmt = "%.4f") + SD * Arguments(fmt = "%.1f"),
            data = penguins)
tinytable_pbterr59ul2tb5yhxbo1
Mean SD
flipper_length_mm 200.9152 14.1

Note that the N() function is supplied by the upstream tables package, and does not have a fmt argument. Fortunately, it is easy to override the built-in function to use custom formatting:

tmp <- data.frame(X = sample(letters[1:3], 1e6, replace = TRUE))
N <- \(x) format(length(x), big.mark = ",")
datasummary(X ~ N, data = tmp)
tinytable_gloyn8bmd1a9ek6c8m3l
X N
a 333,700
b 333,005
c 333,295

title, notes

datasummary includes the same title and notes arguments as in modelsummary:

datasummary(All(penguins) ~ Mean + SD,
            data = penguins,
            title = 'Statistics about the famous Palmer Penguins.',
            notes = c('A note at the bottom of the table.'))
tinytable_uyyn1tkzf9i84ktmjsil
Statistics about the famous Palmer Penguins.
Mean SD
rownames 172.50 99.45
bill_length_mm 43.92 5.46
bill_depth_mm 17.15 1.97
flipper_length_mm 200.92 14.06
body_mass_g 4201.75 801.95
year 2008.03 0.82

align

We can align columns using the align argument. align should be a string of length equal to the number of columns, and which includes only the letters “l”, “c”, or “r”:

datasummary(flipper_length_mm + bill_length_mm ~ Mean + SD + Range,
            data = penguins,
            align = 'lrcl')
tinytable_556pserm4mjaht92t9s4
Mean SD Range
flipper_length_mm 200.92 14.06 59.00
bill_length_mm 43.92 5.46 27.50

add_rows

new_rows <- data.frame('Does',
                       2,
                       'plus',
                       2,
                       'equals',
                       5,
                       '?')
datasummary(flipper_length_mm + body_mass_g ~ species * (Mean + SD),
            data = penguins,
            add_rows = new_rows)
tinytable_ub5aupd2kc7q2jnai1dx
Adelie Chinstrap Gentoo
Mean SD Mean SD Mean SD
flipper_length_mm 189.95 6.54 195.82 7.13 217.19 6.48
body_mass_g 3700.66 458.57 3733.09 384.34 5076.02 504.12
Does 2.00 plus 2.00 equals 5.00 ?

add_columns

new_cols <- data.frame('New Stat' = runif(2))
datasummary(flipper_length_mm + body_mass_g ~ species * (Mean + SD),
            data = penguins,
            add_columns = new_cols)
tinytable_6mdh1slvk68ia9h8vhsw
Adelie Chinstrap Gentoo
Mean SD Mean SD Mean SD New.Stat
flipper_length_mm 189.95 6.54 195.82 7.13 217.19 6.48 0.18
body_mass_g 3700.66 458.57 3733.09 384.34 5076.02 504.12 0.87

Histograms

The datasummary family of functions allow users to display in-line spark-style histograms to describe the distribution of the variables. For example, the datasummary_skim produces such a histogram:

tmp <- mtcars[, c("mpg", "hp")]
datasummary_skim(tmp)
tinytable_5xfrjsm8q1a77dpho6vf
Unique Missing Pct. Mean SD Min Median Max
mpg 25 0 20.1 6.0 10.4 19.2 33.9
hp 22 0 146.7 68.6 52.0 123.0 335.0

Each of the histograms in the table above is actually an SVG image, produced by the kableExtra package. For this reason, the histogram will not appear when users use a different output backend, such as gt, flextable, or huxtable.

The datasummary function is incredibly flexible, but it does not include a histogram option by default. Here is a simple example of how one can customize the output of datasummary. We proceed in 4 steps:

  1. Normalize the variables and store them in a list
  2. Create the table with datasummary, making sure to include 2 “empty” columns. In the example, we use a simple function called emptycol to fill those columns with empty strings.
  3. Add the histograms or boxplots using functions from the kableExtra package.
tmp <- mtcars[, c("mpg", "hp")]

# create a list with individual variables
# remove missing and rescale
tmp_list <- lapply(tmp, na.omit)
tmp_list <- lapply(tmp_list, scale)

# create a table with `datasummary`
# add a histogram with column_spec and spec_hist
# add a boxplot with colun_spec and spec_box
emptycol = function(x) " "
datasummary(mpg + hp ~ Mean + SD + Heading("Boxplot") * emptycol + Heading("Histogram") * emptycol,
    output = "kableExtra",
    data = tmp) %>%
    kableExtra::column_spec(column = 4, image = spec_boxplot(tmp_list)) %>%
    kableExtra::column_spec(column = 5, image = spec_hist(tmp_list))

If you want a simpler solution, you can try the Histogram function which works in datasummary automatically and comes bundled with modelsummary. The downside of this function is that it uses Unicode characters to create the histogram. This kind of histogram may not display well with certain typefaces or on some operating systems (Windows!).

datasummary(mpg + hp ~ Mean + SD + Histogram, data = tmp)
tinytable_v92voqs4f24h6dimrors
Mean SD Histogram
mpg 20.09 6.03 ▂▅▇▇▆▃▁▁▂▂
hp 146.69 68.56 ▅▅▇▂▆▂▃▁▁

Missing values

At least 3 distinct issues can arise related to missing values.

Functions and na.rm

An empty cell can appear in the table when a statistical function returns NA instead of a numeric value. In those cases, you should:

  1. Make sure that your statistical function (e.g., mean or sd) uses na.rm=TRUE by default
  2. Use the Arguments strategy to set na.rm=TRUE (see the Arguments section of this vignette).
  3. Use a convenience function supplied by modelsummary, where na.rm is TRUE by default: Mean, SD, P25, etc.

Empty crosstab cells

An empty cell can appear in the table when a crosstab is deeply nested, and there are no observations for a given combination of covariates. In those cases, you can use the * DropEmpty pseudo-function. See the “Empty cells” section of this vignette for examples.

Factors

By default, the factor function in R does not assign a distinct factor level to missing values: the factor function’s exclude argument is set to NA by default. To ensure that NAs appear in your table, make sure you set exclude=NULL when you create the factor.

Internally, the datasummary_balance and datasummary_crosstab functions convert logical and character variables to factor with the exclude=NULL argument. This means that NAs will appear in the table as distinct rows/columns. If you do not want NAs to appear in your table, convert them to factors yourself ahead of time. For example:

mycars <- mtcars[, c("cyl", "mpg", "hp", "vs")]
mycars$cyl[c(1, 3, 6, 8)] <- NA
mycars$cyl_nona <- factor(mycars$cyl)
mycars$cyl_na <- factor(mycars$cyl, exclude = NULL)

datasummary_crosstab(cyl_nona ~ vs, data = mycars)
tinytable_gx4jvruen4cuuf6ju7kg
cyl_nona 0 1 All
4 N 1 8 9
% row 11.1 88.9 100.0
6 N 2 3 5
% row 40.0 60.0 100.0
8 N 14 0 14
% row 100.0 0.0 100.0
All N 18 14 32
% row 56.2 43.8 100.0
datasummary_crosstab(cyl_na ~ vs, data = mycars)
tinytable_oko4mkvdvzlgh6mn2uhn
cyl_na 0 1 All
4 N 1 8 9
% row 11.1 88.9 100.0
6 N 2 3 5
% row 40.0 60.0 100.0
8 N 14 0 14
% row 100.0 0.0 100.0
NA N 1 3 4
% row 25.0 75.0 100.0
All N 18 14 32
% row 56.2 43.8 100.0

Appearance

In the Appearance Vignette we saw how to customize the tables produced by the modelsummary function. The same customization possibilities are also available for all functions in the datasummary_* family of functions. Indeed, we can customize the tables produced by datasummary using the functions provided by tinytable, gt, kableExtra, flextable, huxtable, and DT. For instance, to customize tables using tinytable, we can do:

library(tinytable)

datasummary(All(penguins) ~ sex * (Mean + SD), data = penguins) |>
  style_tt(i = 3, background = 'cyan', color = 'red')
tinytable_g6nd333x5tbnimlcddlk
Female Male
Mean SD Mean SD
rownames 173.44 99.08 175.20 97.99
bill_length_mm 42.10 4.90 45.85 5.37
bill_depth_mm 16.43 1.80 17.89 1.86
flipper_length_mm 197.36 12.50 204.51 14.55
body_mass_g 3862.27 666.17 4545.68 787.63
year 2008.04 0.81 2008.04 0.81

To customize a table using the gt package, we can:

library(gt)

adelie <- function(x) web_image('https://user-images.githubusercontent.com/987057/85402702-20b1d280-b52a-11ea-9950-f3a03133fd45.png', height = 100)
gentoo <- function(x) web_image('https://user-images.githubusercontent.com/987057/85402718-27404a00-b52a-11ea-9ad3-dd7562f6438d.png', height = 100)
chinstrap <- function(x) web_image('https://user-images.githubusercontent.com/987057/85402708-23acc300-b52a-11ea-9a77-de360a0d1f7d.png', height = 100)

cap <- 'Flipper lengths (mm) of the famous penguins of Palmer Station, Antarctica.'
f <- (`Species` = species) ~ (` ` = flipper_length_mm) * (`Distribution` = Histogram) + flipper_length_mm * sex * ((`Avg.` = Mean)*Arguments(fmt='%.0f') + (`Std. Dev.` = SD)*Arguments(fmt='%.1f'))
datasummary(f,
            data = penguins,
            output = 'gt',
            title = cap,
            notes = 'Artwork by @allison_horst',
            sparse_header = TRUE) %>%
    text_transform(locations = cells_body(columns = 1, rows = 1), fn = adelie) %>%
    text_transform(locations = cells_body(columns = 1, rows = 2), fn = chinstrap) %>%
    text_transform(locations = cells_body(columns = 1, rows = 3), fn = gentoo) %>%
    tab_style(style = list(cell_text(color = "#FF6700", size = 'x-large')), locations = cells_body(rows = 1)) %>%
    tab_style(style = list(cell_text(color = "#CD51D1", size = 'x-large')), locations = cells_body(rows = 2)) %>%
    tab_style(style = list(cell_text(color = "#007377", size = 'x-large')), locations = cells_body(rows = 3)) %>%
    tab_options(table_body.hlines.width = 0, table.border.top.width = 0, table.border.bottom.width = 0) %>%
    cols_align('center', columns = 3:6)
Flipper lengths (mm) of the famous penguins of Palmer Station, Antarctica.
Species Distribution Female Male
Avg. Std. Dev. Avg. Std. Dev.
▁▃▆▇▃▅▂ 188 5.6 192 6.6
▁▄▃▇▆▄▃▁▂ 192 5.8 200 6.0
▂▅▅▇▃▅▂▁▃ 213 3.9 222 5.7
Artwork by @allison_horst
